7 Channel Mixer MX-7 Passive 7-Channel VHF Separator-Combiner
Manufactured by Pico Macom
Brand NEW

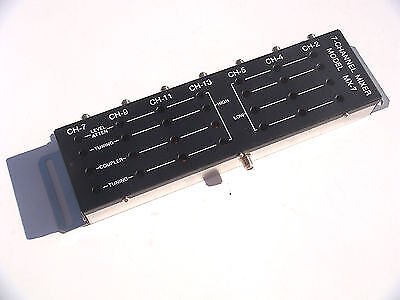

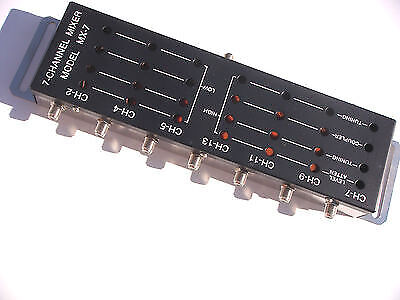

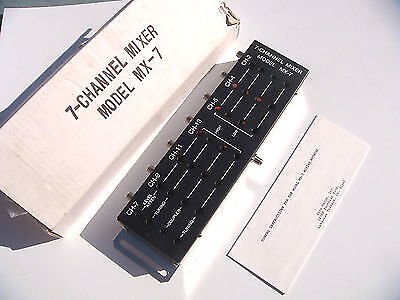

The Pico Macom MX-7 Signal Splitter Combiner low loss 7-channel mixing
network is an extremely cost effective splitting or combining network
for use in smaller MATV and SMATV systems. The user friendly and compact
design facilitates easy installation. Individual channel tuning and
attenuator controls provide accurate quick-andeasy setup or
reconfiguration reducing system down time.
The MX7 used as a separator significantly reduces system harmonics when
used prior to a series of Pico Macom’s XBS single channel strip
amplifiers or signal processors. The MX7 used as a combiner is the
perfect filtration system to be used when combining outputs from channel
specific VHF antennas before insertion into a cable system via Pico
Macom’s TA52.
Minimum Frequency | 54 MHz |
Maximum Frequency | 216 MHz |
Impedance | 75 Ohm |
Operations:
1. Connect the cable from a VHF broadband antenna to the common
connection of the MX-7.
2. Connect a cable from the MX-7 single channel
outputs to channel- ized amplifiers or combining system.
3. Connect a
signal level meter to the headend common test point 4.
