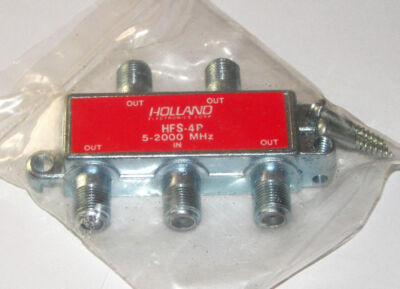

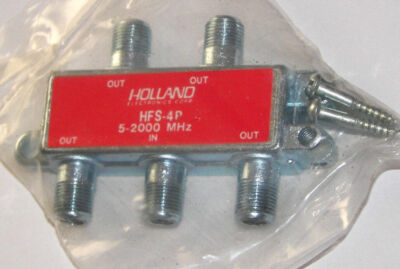

NEW 4 Way Splitter Holland HFS-4P 5-2000 MHz Power Passing 4 Ports

Description

Holland HFS

Series broadband splitters are an advanced design providing the lowest insertion loss from 5-2000 MHz as well as exceptionally high isolation.

The HFS-4P is power passive on all ports.

Features:

5 – 2000 MHz Wideband Operation

Power Passing to All Ports

High Port-to-Port Isolation

Specifications:

Max Voltage: 35V

Max Current Rating: 750 mA

Temperature Range: -40° to 60° C

Port Spacing: 1″

RFI: >130 dB

Impedance: (ohms): 75

Insertion Loss (dB) (Max):

5 – 40: Typ. 7.8 / QC. 8.0

41 – 550: Typ. 7.8 / QC. 8.0

551 – 950: Typ. 8.0 / QC. 8.2

951 – 1450: Typ. 9.0 / QC. 9.5

1451 – 2000: Typ. 10 / QC. 10.5
